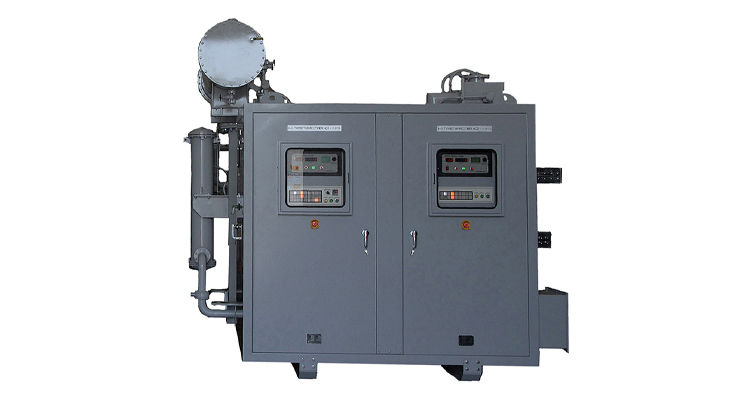

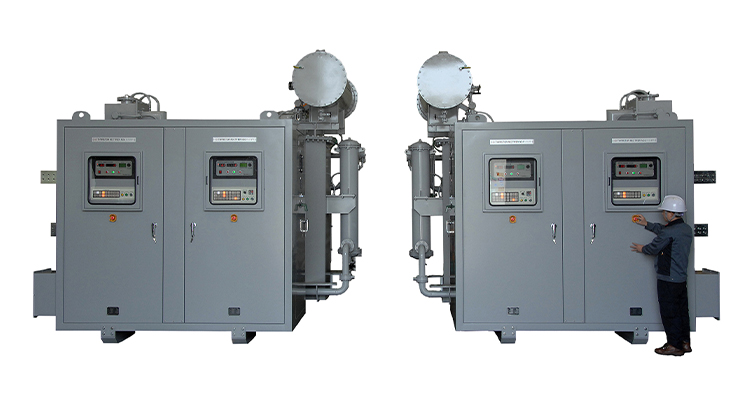

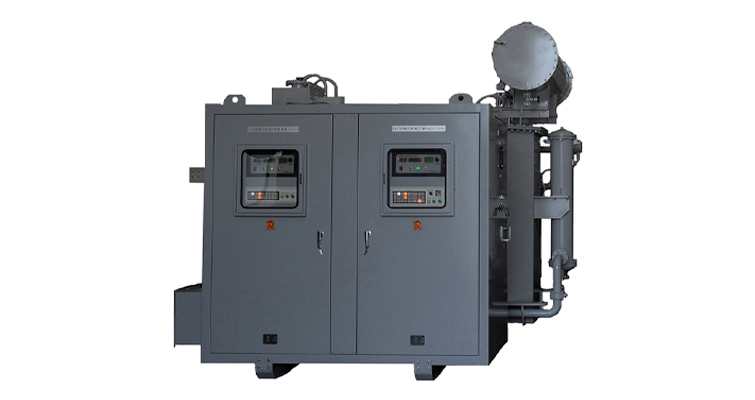

SCR 대용량 전기 제련용 정류기
(270VDC 36,000ADC)
IN PUT :3φ 6.6KV or 22.9KVac 60HZ
OUTPUT : 270VDC 36,000A 9720KW
P.F : 85%(max load)
E.F : 90%이상(max load)
OUTPUT : 270VDC 36,000A 9720KW
P.F : 85%(max load)
E.F : 90%이상(max load)
Cooling sys. : Oil + Water Cooling
Ambient temperature : -5℃ ~ 35℃
Continuous rating : 24hr/365day
Variable : 0 ~ 270Vdc / 0 ~ 36,000ADC / C.C & C.V control
Ambient temperature : -5℃ ~ 35℃
Continuous rating : 24hr/365day
Variable : 0 ~ 270Vdc / 0 ~ 36,000ADC / C.C & C.V control
Interface : Analog 0 – 10Vdc / 4 – 20mA / ProFibus /RS-485 Modbus
Protection : AC ocr,DC ocr,Fuse cut,Fan trip,Water cut,Over Temperature
Protection : AC ocr,DC ocr,Fuse cut,Fan trip,Water cut,Over Temperature
