SCR AIR COOLED RECTIFIER SPECIFICATION TABLE

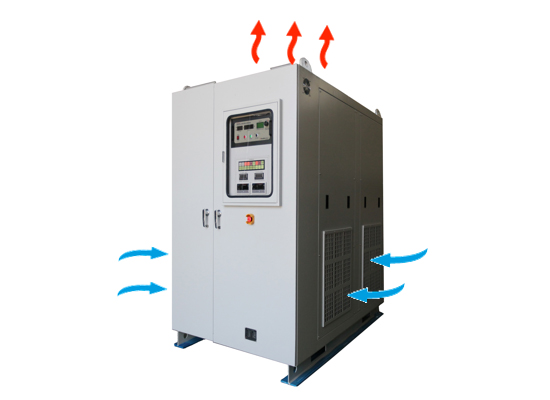

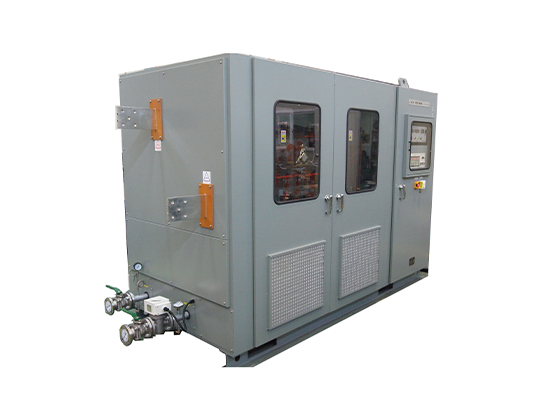

As shown in the photo on the left, the ventilation cooling structure of the basic standard SCR rectifier is a forced air cooling type that discharges hot air to the outside by rotating the cooling fan installed on the upper side through the suction air filter installed on the side. Therefore, the lifespan depends on the enviroment of the each rectifier room.

모델
(Model)
용량
(Capacity)

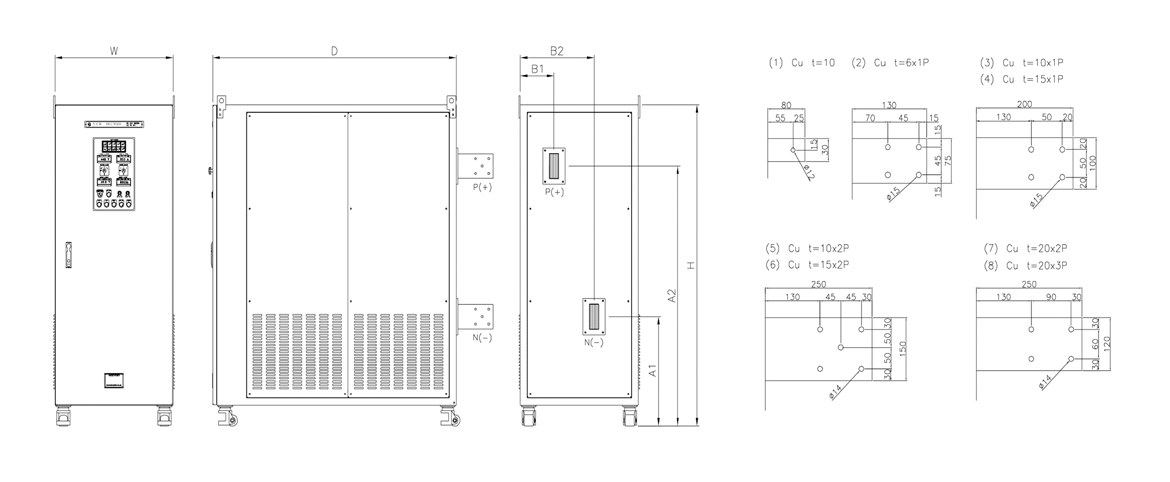

외형치수 Dimensions(mm) 총중량(Kg) 출력단자
(Terminal)
W D H A1 A2 B1 B2
KSSD 12005 12V 50A 500 500 250 110 110 100 100 50 1
KSSD 12001 12V 100A 500 550 320 120 120 120 120 80 1
KSSD 12005 15V 500A 500 600 600 120 120 120 120 120 1
KSSD 15010 15V 1000A 500 600 800 300 300 150 150 180 4
KSSD 15020 15V 2000A 500 700 1300 400 1000 160 420 450 4
KSSD 15030 15V 3000A 600 1100 1500 450 1100 170 450 600 4
KSSD 15050 15V 5000A 750 1100 1600 600 1150 230 600 900 5
KSSD 15080 15V 8000A 900 1200 1800 700 1300 290 750 1800 7
KSSD 15100 15V 10000A 1000 1200 1800 750 1300 280 850 2200 8
KSSD 24080 24V 8000A 800 1700 1800 535 1375 217 568 - -
KSSD 30300 30V 3000A 750 1150 1710 649 1154 205 592 - -
KSPR 40060 ±40V ±6000A 2300 1000 2870 - - - - - -
KSPR 56048 ±40V ±6000A 2000 1200 2405 - - - - - -
