KOR SCR Oil-COOLED RECTIFIER SPECIFICATION TABLE
| 모델 (Model) |
용량 (Capacity) |

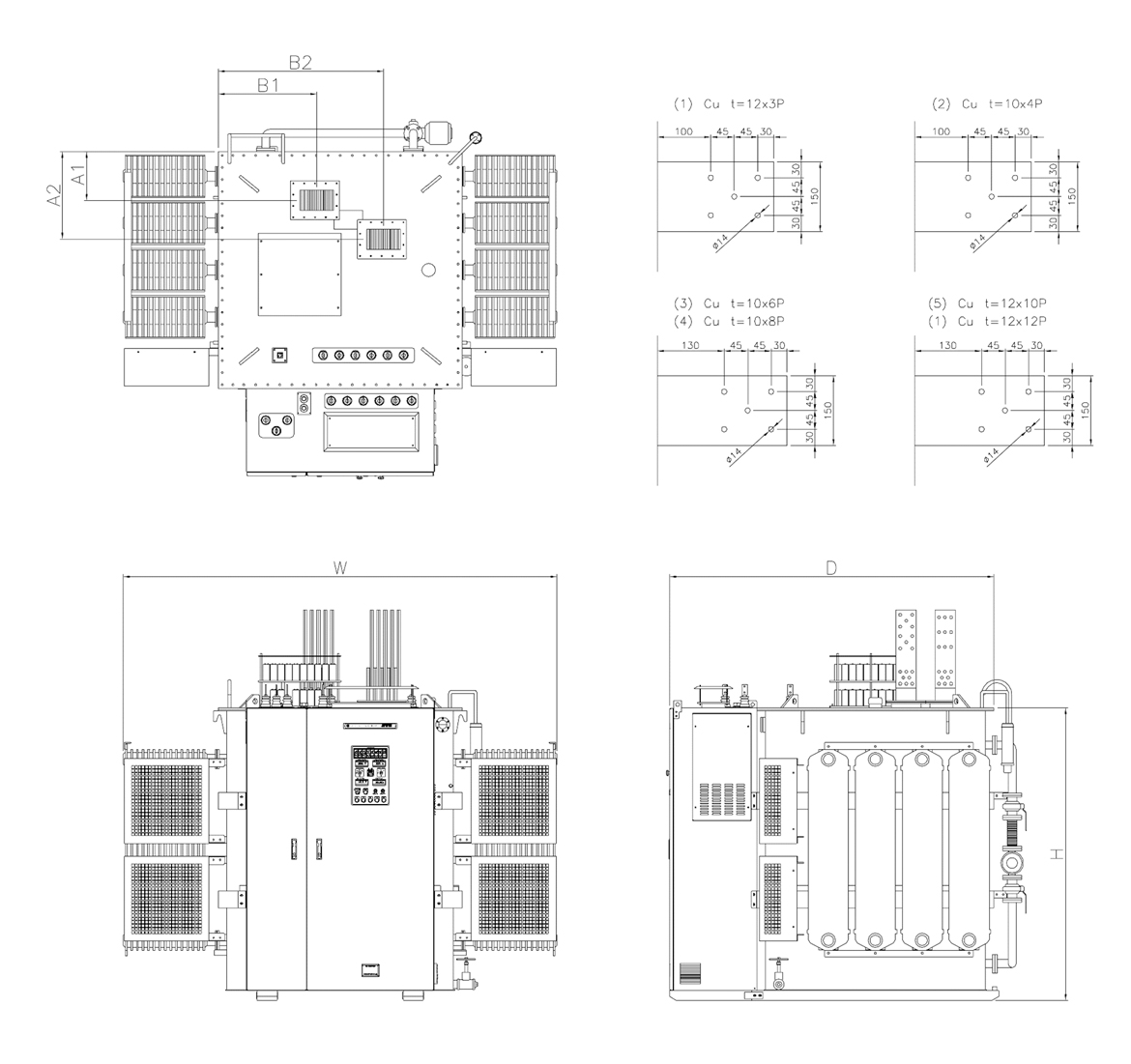

외형치수 Dimensions(mm) | 총중량(ton) | 출력단자 (Terminal) |
||||||
|---|---|---|---|---|---|---|---|---|---|---|
| W | D | H | A1 | A2 | B1 | B2 | ||||
| KSSO 20800 | 20V 8000A | 1930 | 1900 | 1600 | 340 | 600 | 500 | 800 | 3 | 1 |
| KSSO 201000 | 20V 10000A | 2200 | 1900 | 1600 | 340 | 760 | 590 | 800 | 3.5 | 2 |
| KSSO 201200 | 20V 12000A | 2200 | 1900 | 1600 | 340 | 760 | 630 | 850 | 4.3 | 2 |
| KSSO 201500 | 20V 15000A | 2815 | 2145 | 1600 | 340 | 760 | 650 | 950 | 5 | 3 |
| KSSO 202000 | 20V 20000A | 2500 | 3000 | 2000 | 370 | 810 | 770 | 1100 | 6 | 4 |
| KSSO 202500 | 20V 25000A | 3340 | 2500 | 2000 | 370 | 810 | 770 | 1100 | 7.4 | 5 |
| KSSO 203000 | 20V 30000A | 3000 | 2950 | 2080 | 420 | 820 | 830 | 1100 | 8 | 6 |
