KOR SCR AIR COOLED & Oil-COOLED RECTIFIER SPECIFICATION TABLE
(High pressure 250Vdc ~ 400Vdc)
(High pressure 250Vdc ~ 400Vdc)
| 모델 (Model) |
용량 (Capacity) |

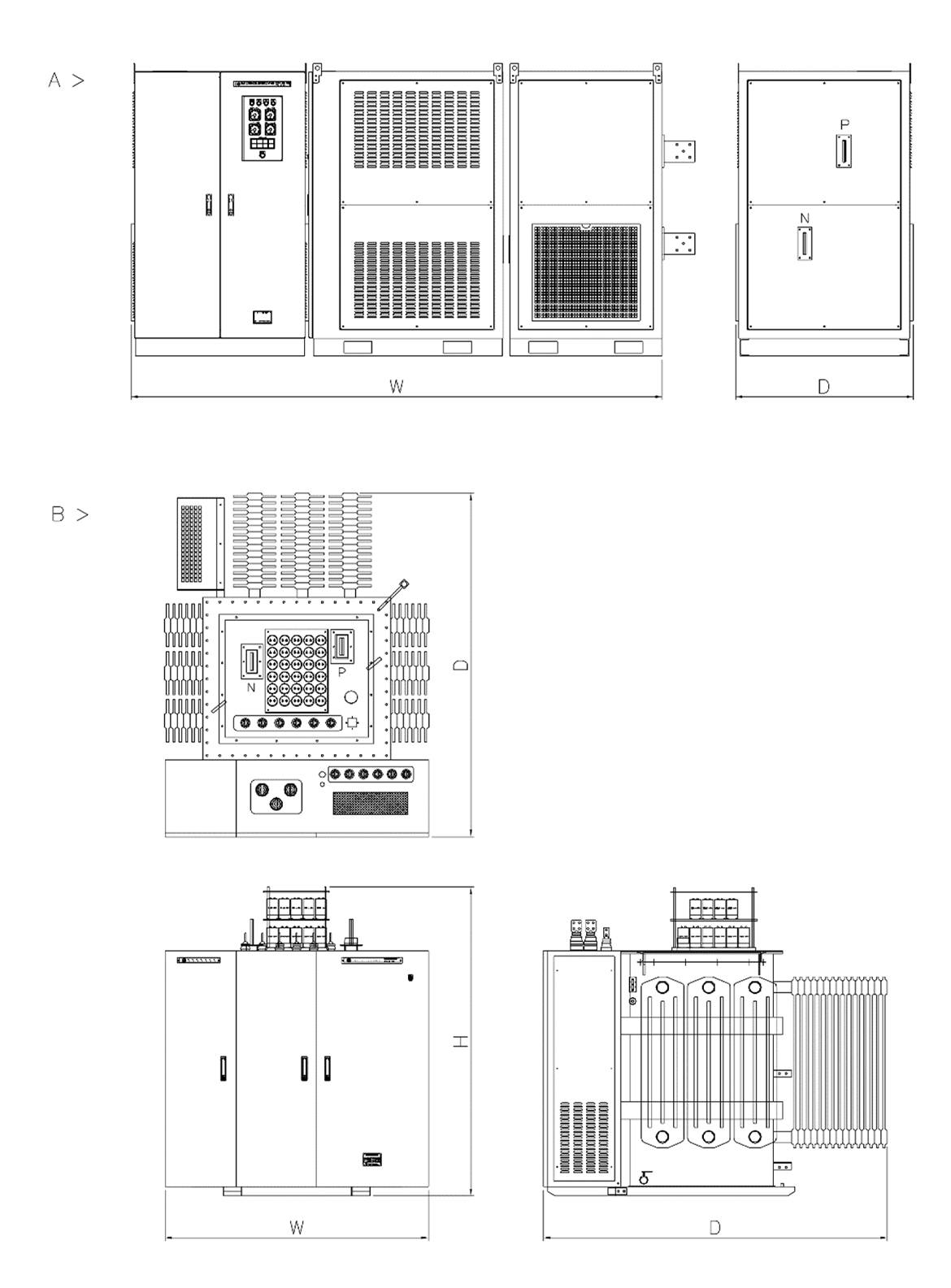

외형치수 Dimensions(mm) | 총중량(Kg) | 형식 (Type) |
||
|---|---|---|---|---|---|---|
| W | D | H | ||||
| KSG 30025 | 300V 250A | 850 | 850 | 1300 | 2500 | A |
| KSG 30030 | 300V 300A | 850 | 850 | 1300 | 2500 | A |
| KSG 30040 | 300V 400A | 850 | 850 | 1300 | 2500 | A |
| KSG 30060 | 300V 600A | 850 | 850 | 1300 | 3000 | A |
| KSG 40030 | 400V 300A | 850 | 850 | 1300 | 2500 | A |
| KSG 40050 | 400V 500A | 850 | 850 | 1300 | 3000 | A |
| KSG 40070 | 400V 700A | 850 | 850 | 1500 | 3500 | A |
| KSG 400120 | 400V 1200A | 1400 | 3000 | 1500 | 4000 | A |
| KSG 400200 | 400V 2000A | 1400 | 3000 | 2200 | 5000 | A |
| KSG 40090 | 400V 900A | 1400 | 3000 | 2200 | 5000 | B |
| KSG 400120 | 400V 1200A | 1400 | 3000 | 2200 | 5000 | B |
| KSG 400200 | 400V 2000A | 1400 | 3000 | 2200 | 6000 | B |
| KSG 250200 | 250V 2000A | 850 | 850 | 1300 | 5000 | B |
