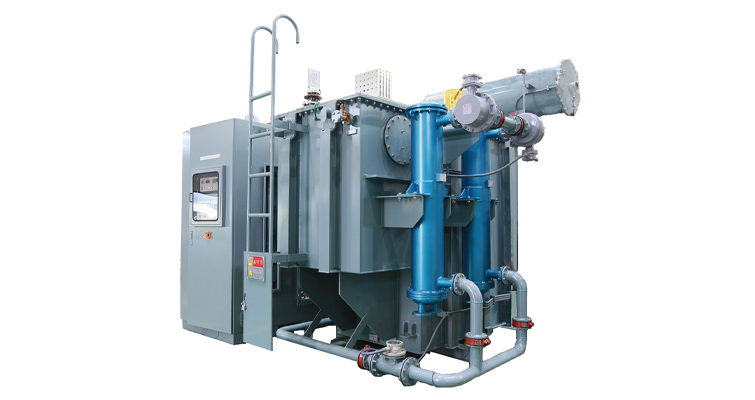

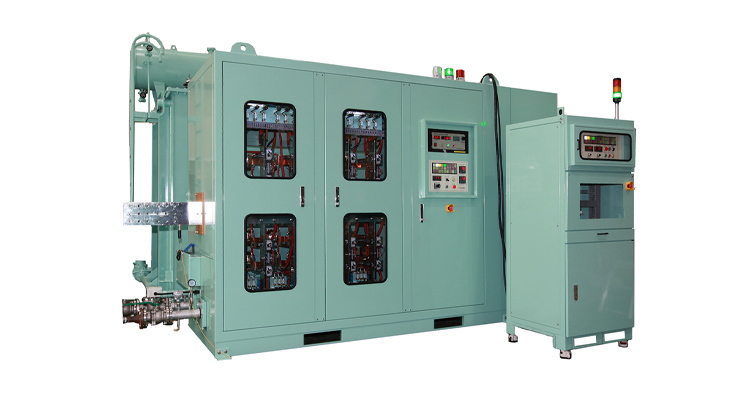

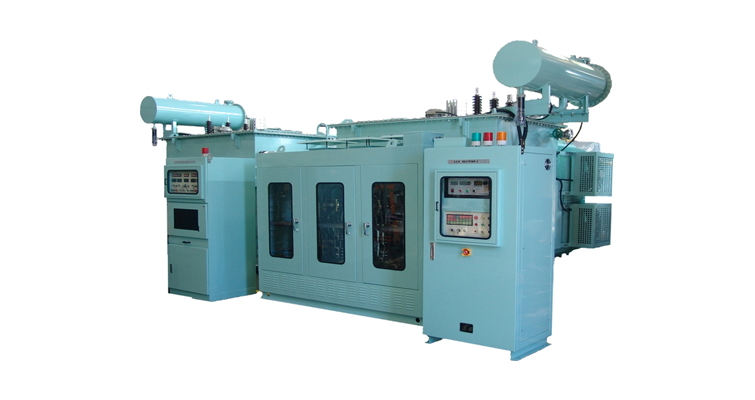

SCR 대용량 전해 동박용 정류기
(40V~80VDC 50,000A ~ 80,000ADC)
IN PUT :3φ 6.6KV or 22.9KVac 60HZ
OUTPUT : 40V ~ 80VDC 50,000A ~ 80,000A
P.F : 85%(max load)
E.F : 90%이상(max load)
RIPPLE : 5%(Full load)
OUTPUT : 40V ~ 80VDC 50,000A ~ 80,000A
P.F : 85%(max load)
E.F : 90%이상(max load)
RIPPLE : 5%(Full load)
Cooling sys. : Oil + Water Cooling
Ambient temperature : -5℃ ~ 35℃
Variable : 0 ~ 40Vdc/0 ~ 80Vdc
Interface : Analog 0 – 10Vdc
4 – 20mA
Ambient temperature : -5℃ ~ 35℃
Variable : 0 ~ 40Vdc/0 ~ 80Vdc
Interface : Analog 0 – 10Vdc
4 – 20mA
ProFibus /RS-485 Modbus
Protection : AC ocr,DC ocr,Fuse cut,Fan trip,
Water cut,Over Temperature
Continuous rating : 24hr/365day
Protection : AC ocr,DC ocr,Fuse cut,Fan trip,
Water cut,Over Temperature
Continuous rating : 24hr/365day
