KOR IGBT RECTIFIER SPECIFICATION TABLE
| 모델 (Model) |
용량 (Capacity) |

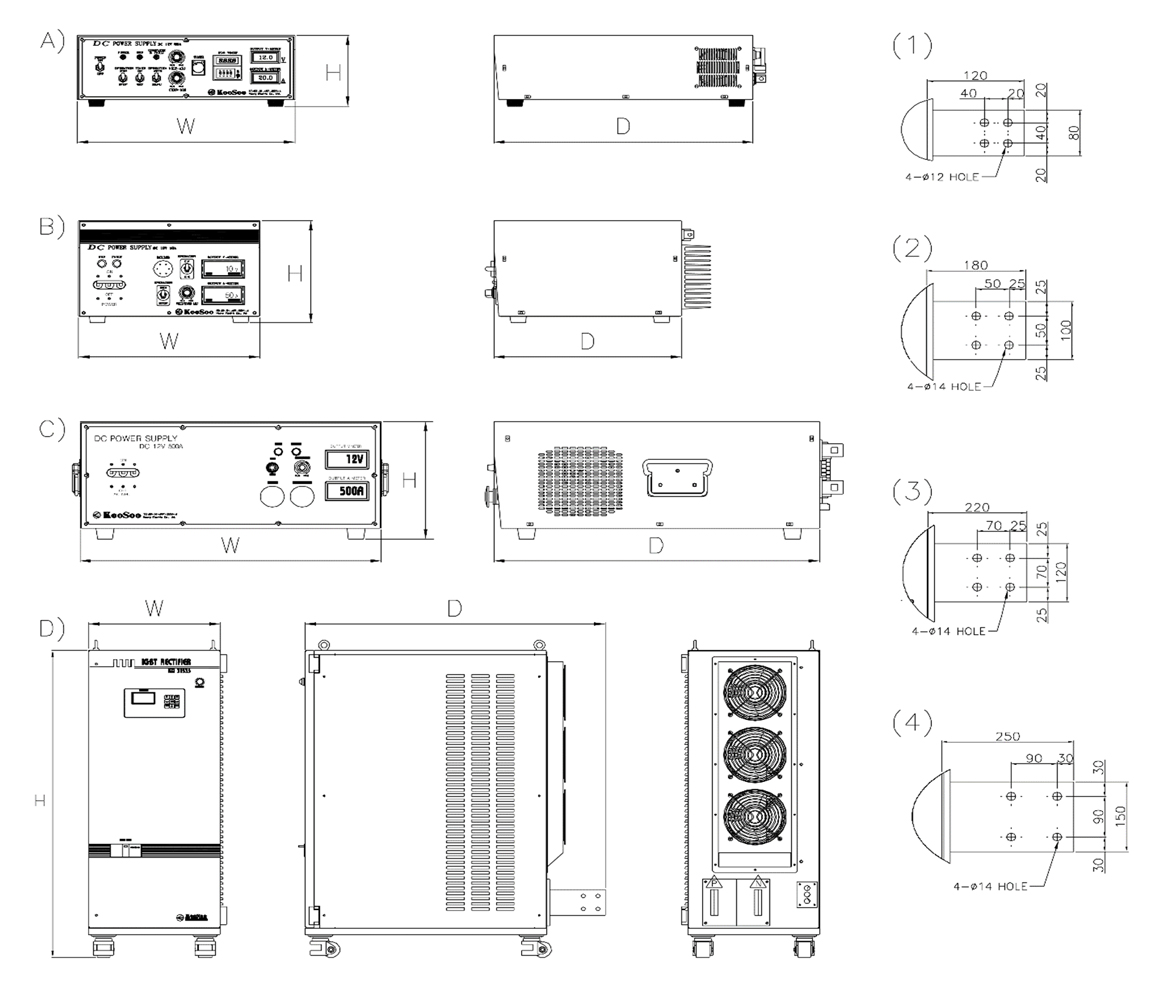

외형치수 Dimensions(mm) | 중량(Kg) | 출력단자 (Terminal) |
형식 (Type) |
||
|---|---|---|---|---|---|---|---|
| A(W) | B(D) | C(H) | |||||
| KSF 10005 | 10V - 10,20,30,50A | 360 | 465 | 120 | 5 | - | A |
| KSI 10005 | 10V - 5A | 300 | 310 | 200 | 7 | - | B |
| KSI 10020 | 10V - 100,200A | 360 | 465 | 125 | 10 | - | C |
| KSI 10050 | 10V - 300,500A | 500 | 580 | 250 | 20 | - | C |
| KSI 15020 | 15V - 100,200A | 500 | 550 | 250 | 15 | - | C |
| KSI 15150 | 15V - 300,500A | 500 | 650 | 250 | 20 | - | C |
| KSI 15100 | 10V,12V,15V - 1000A | 360 | 670 | 625 | 70 | 1 | D |
| KSI 15150 | 10V,12V,15V - 1500A | 400 | 750 | 795 | 90 | 2 | D |
| KSI 15200 | 10V,12V,15V - 2000A | 400 | 800 | 795 | 110 | 2 | D |
| KSI 15300 | 10V,12V,15V - 3000A | 450 | 900 | 950 | 170 | 3 | D |
| KSI 12400 | 12V - 4000A | 450 | 1000 | 1000 | 200 | 4 | D |
| KSI 12500 | 12V - 5000A | 500 | 1000 | 1000 | 230 | 4 | D |
| KSI 12700 | 12V - 7000A | 700 | 1200 | 1400 | 270 | 4 | D |
| KSI 12800 | 12V - 8000A | 700 | 1200 | 1600 | 300 | 4 | D |
| KSI 121000 | 12V - 10000A | 700 | 1200 | 1900 | 350 | 4 | D |
| KSI 04075 | 40V 7500A | 2250 | 2000 | 2000 | 3500 | - | - |
| KSI 40040 | 400V 400A | 650 | 1320 | 1100 | 500 | - | - |
| KSI 035550 | 35V 5500A | 1440 | 1900 | 1900 | 2000 | - | - |
