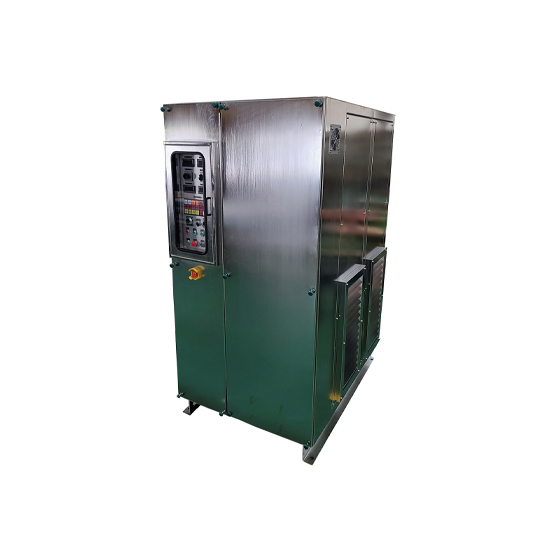

01

SCR MEDIUM CAPACITY SURFACE TREATMENT, SEAWATER EQUIPMENT RECTIFIER

20VDC 6,000A 120KW

IN PUT :3φ 380Vac or 440Vac 60HZ
OUTPUT : 20VDC 6,000A 120KW
P.F : 85%(max load)
E.F : 90%Over(max load)
RIPPLE : 5%(Full load)
Cooling : Air Cooling
Ambient temperature : -5℃ ~ 35℃
Variable : 0 – 100% C.C/C.V
Interface : Analog 0 – 10Vdc / 4 – 20mA / ProFibus /RS-485 Modbus/c-c link
Protection : AC ocr,DC ocr,Fuse cut,Fan trip,NFB Trip,Over Temperature

Country/Region of Manufacture :

South Korea

Brand :

KooSoo Heavy electric

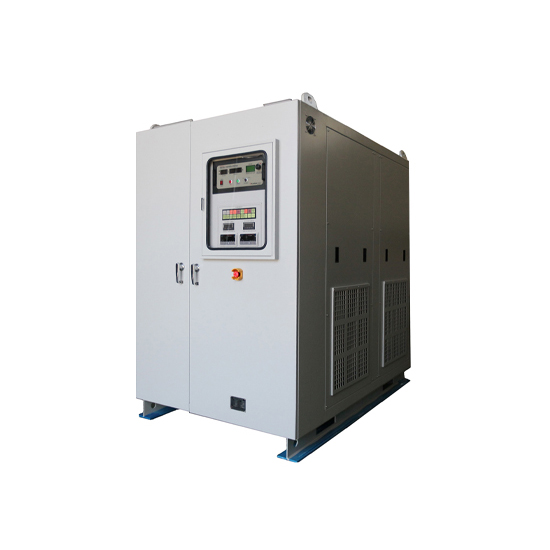

02

SCR MEDIUM CAPACITY SURFACE TREATMENT, SEAWATER EQUIPMENT RECTIFIER

20VDC 15,000A 300KW

IN PUT :3φ 380Vac or 440Vac 60HZ
OUTPUT : 20VDC 15,000A 300KW
P.F : 85%(max load)
E.F : 90%Over(max load)
RIPPLE : 5%(Full load)
Cooling : Air Cooling
Ambient temperature : -5℃ ~ 35℃
Variable : 0 – 100% C.C/C.V
Interface : Analog 0 – 10Vdc / 4 – 20mA / ProFibus /RS-485 Modbus/c-c link
Protection : AC ocr,DC ocr,Fuse cut,Fan trip,NFB Trip,Over Temperature

Country/Region of Manufacture :

South Korea

Brand :

KooSoo Heavy electric

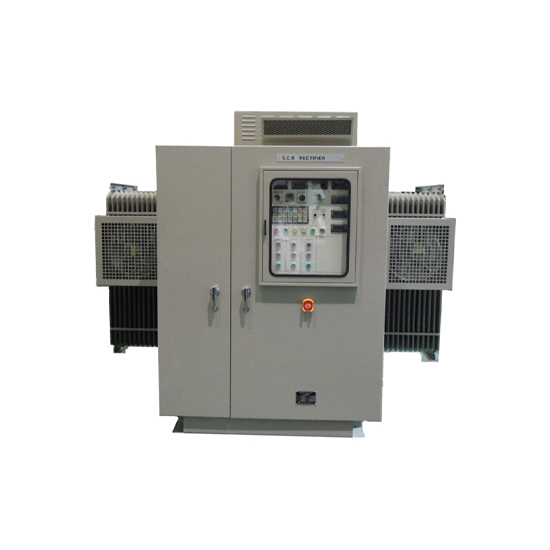

03

SCR MEDIUM CAPACITY SURFACE TREATMENT, SEAWATER EQUIPMENT RECTIFIER

40V/80VDC 20,000A

IN PUT :3φ 380Vac or 440Vac 60HZ
OUTPUT : 40V/80VDC 20,000A
P.F : 85%(max load)
E.F : 90%Over(max load)
RIPPLE : 5%(Full load)
Cooling : Oil Cooling
Ambient temperature : -5℃ ~ 40℃
Variable : 0 – 100% C.C/C.V
Interface : Analog 0 – 10Vdc / 4 – 20mA / ProFibus /RS-485 Modbus/c-c link
Protection : AC ocr,DC ocr,Fuse cut,Fan trip, Over Temperature
Protection : AC ocr,DC ocr,Fuse cut,Fan trip, NFB Trip,Over Temperature

Country/Region of Manufacture :

South Korea

Brand :

KooSoo Heavy electric
